Wacker Neuson’s range of ground-engaging compact telehandlers offer lifting, loading, stacking, moving and digging functions. The company asserts that its small-footprint machines outperform comparable units with class-leading operation and high payload capacity in a compact frame.

With five versatile models available to the Southern African market, Wacker Neuson says it has specially tailored its telehandlers to meet the demands of the most challenging job site environments.

The 1445 telehandler boasts a stacking payload of 1.4 t and a lift height of 4.3 m, allowing it to handle heavy loads while maintaining reserve capacity. The machine features dynamic all-wheel drive, high payload, low weight and exceptional manoeuvrability.

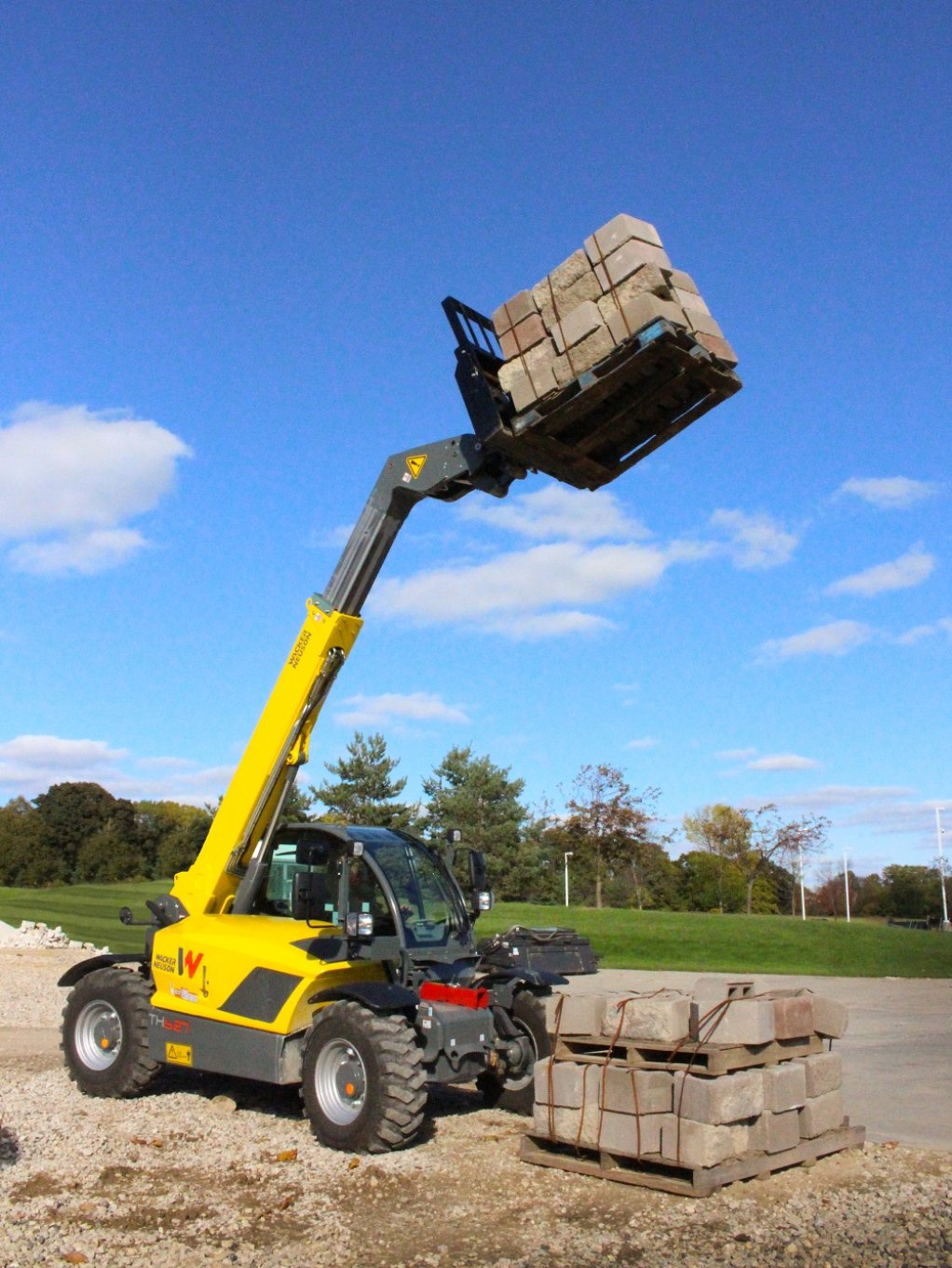

The TH627 telehandler is particularly suited to jobs that call for stacking heights of 6 m and a 2.7 t payload, such as on construction sites.

The 3507 model features a compact design and low overall height. “An impressive stacking height of 7.0 m and a 3.5 t payload, coupled with a small turning radius, make this robust telehandler deceptively powerful. A combination of stepless travel up to 40 km/h, integrated load-sensing hydraulics and smart driver assistance powers this machine’s maximum efficiency,” explains Wacker Neuson sales manager: sub-Saharan Africa Glenn Theron.

The 3610 telehandler is considered an all-rounder within the portfolio, with an operating weight of 8.2 t, a maximum stacking height of 9.5 m and a payload capacity of 3.6 t. These capabilities, paired with its three-part compact-enhancing boom design, make telescopic handler particularly suited for materials handling environments such as recycling applications.

With a 9-m stacking height and built to carry 5.5 t, the telehandler 5509 is regarded as the largest model in both size and strength. The high-performance power unit is said to deliver exceptional torque and it features an ecospeed-PRO transmission as a standard fitment.

Wacker Neuson says that its telehandlers have been engineered with a focus on efficiency, safety and operator comfort with the aim of ensuring reliable performance, reduced operator fatigue and maximum productivity. Theron also highlights the combined brake-inching pedal fitted on all machines: “This component ensures simple and safe operation, wear-free control of the working speed at high engine speeds and maximum working hydraulics even at low travel speeds.”

All models can be equipped with a third control circuit pressure relief button on the side of the boom, designed to enable fast, easy and safe coupling and uncoupling of hydraulically operated attachments while the engine remains running, helping to reduce downtime during attachment changes.

Theron explains that the all-wheel steering and undivided frame on all the telehandler models provides stability even at full steering lock. “With steering angles of up to 40° on both front and rear axles, these machines offer maximum manoeuvrability, while maintaining consistent payload independent of the steering angle to ensure constant leverage ratios.” He adds that selecting the front axle steering mode provides precise guidance and control for specialised attachments, ensures safe high-speed travel on roads, and makes manoeuvring in trailer mode easier. The crab steering function on all models enables precise manoeuvring of the telehandlers in confined spaces, gentle driving to minimise surface impact on delicate or sensitive terrains and also facilitates accurate control when operating with specialised attachments.

Models 3507 and 3610 offer two selectable cabin heights to suit different operational needs. All models feature an elevated cab, combined with large, glazed areas and narrow cabin pillars, offering 360° all-round visibility, enhancing safety for both the operator and workers in the surrounding area. A panoramic front windscreen is designed to offer an unobstructed view of the attachment.

Colour-coded switches and a consistent colour scheme for hydraulic, electric, driving, and safety functions on all models helps reduce the risk of switch confusion, simplifying fleet handling and enhancing safety.

The 3507, 3610 and 5509 models are equipped with a 7" LCD display that provides a summary of machine data and enables intuitive machine settings adjustment with a user-friendly jog dial.
